  • 3D In line Solder Paste Inspection Machine F510

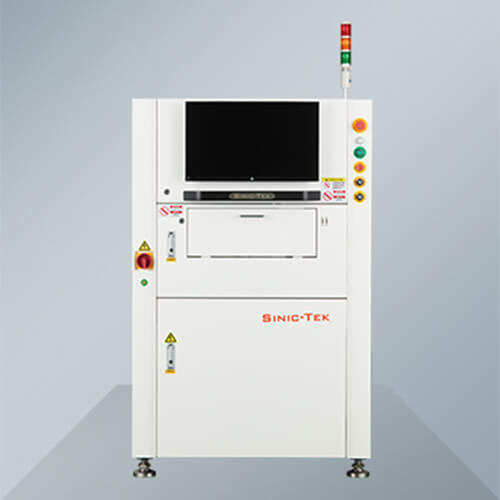

3D In line Solder Paste Inspection Machine F510

3D In line Solder Paste Inspection Machine F510

  • 3D SPI
  • PCB size:470 x470 mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: 3D In line Solder Paste Inspection Machine F510,PCB size:470 x470 mm
  • INQUIRY

3D In line Solder Paste Inspection Machine F510

Specifications:

3D In line Solder Paste Inspection Machine F510

TECHNICAL PARAMETERS:

Inspection Principle:Programmable phase contour modulation measurement techniques(PSLM PMP)

Inspection type:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest component: 01005.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height:≤1um 4 Sigma;volume/acreage<1%4 Sigma.

Maximum Loading PCB Size(X*Y): 470x470mm.

Inspection Speed: 0.42 SEC/FOV.

FiducialDetection Time: 0.3sec/piece.

Maximum inspection height:±450um.

RGB Tune patented technology.

D-lighting patented technology.

Dynamic contour with coaxial telecentric lens perfect processing flexible circuit board testing.

Barcode function with traceability.

Badmark transfer function to mounters.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.
