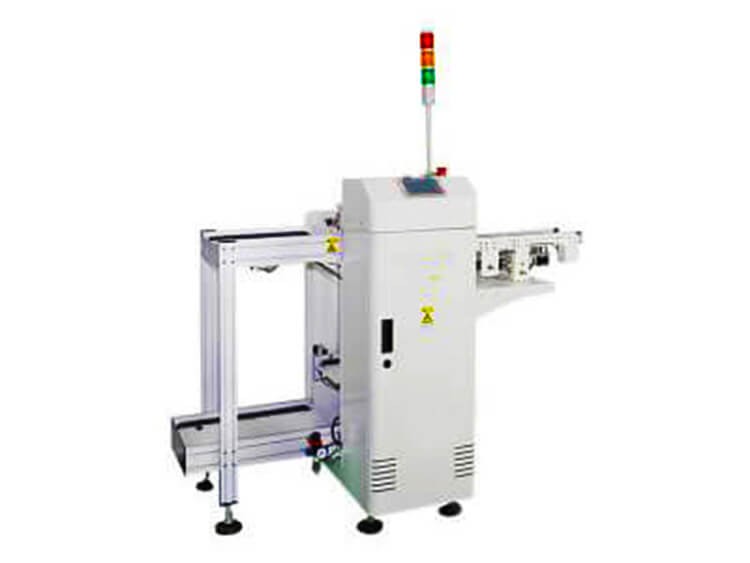

Automatic PCB loader

Automatic PCB loader

  • Demensions:500 x 800 x 1160mm
  • PCB size: 50x50 - 400x350mm
  • SMEMA compliant
  • Width adjustment automatically
  • Product description: Automatic PCB loader,Demensions:500 x 800 x 1160mm, PCB size: 50x50 - 400x350mm, Width adjustment automatically
  • INQUIRY

Automatic PCB loader

Product Features:


Automatic PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

Main functions and Parameter

Model#

Automatic Loader

Item

Name

Description

1

Automatic Loader

Dimensions: 1450(L)×680(W)×1650(H)mm

Special Aluminum alloy guide rails and rubber belt

3?Magazine lifting with screw rod by 90WSPG electric-brake motor

4?Pneumatic PCB clamping structure

5?Magazine dimensions: 300(W)×340(L)×570(H)mm

6?PCB size: 60(W)×60(L)mm--250(W)×300(L)mm

7?Direction: L-R/ R-L

8?Adjustable Lifting distance:10,20,30,40 and 50mm

9?Programmable Siemens PLC and controller

10?PCB Automatic loading to conveyor

11?Touch Panel controlled interface/Buttons interface

12?Working power 0.25KW

13?Power Source: 220v 50HZ

14?Air Source: 4-6MPa

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solutions !
B. life time Online Technical Support !
C. Free Online Installation Training Service !
