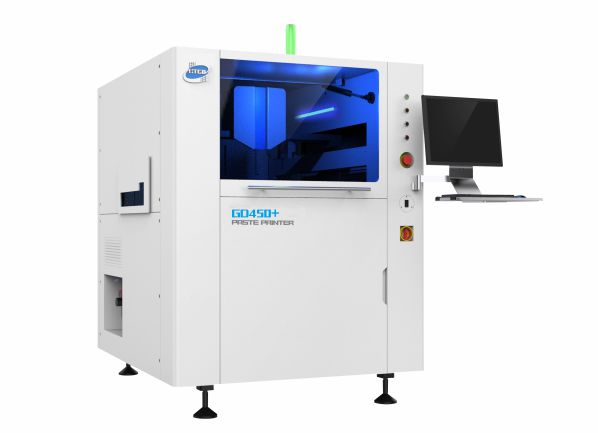

Automatic Solder paste printer

Full Automatic Online SMT solder paste Stencil printer GD450+,Sold big amount in the Market, Good quality is already certificated.

GD450+™ Specificataion

PCB Parameter

Max PCB size (X x Y)

450mm x 350mm

Min PCB size (Y x X)

50mm x 50mm

PCB Thickness



Max. PCB Diagonal 1%

Max PCB weight


PCB margin gap

3 mm(conveyor belt PCB/frame touching width)

Max bottom gap


Conveyor Speed


Converyor height


Conveyor direction


Conveyor method

Single rail

PCB fixing method

Software adjustable pressure elastic side pressure (options: 1, bottom holistic suction vacuum;2, bottom multi-point area vacuum; 3, edge locking substrate clamping)

PCB support Method

Magnetic thimble,equal high block,vacuum suction cavityoption:Grid-Lok)

Printing Parameter

Printing head

Linear motor type close loop printing head

Stencil frame size

370mm x 470mm~737 mm x 737 mm

Max printing area (X x Y)

450mm x 350mm

scraper type

steel scraper/rubber scraper(45°/55°/60)

scraper length


scraper height


scraper thickness

0.25mm Diamond-like carbon coating

Printing method

Single or dual scraper

Mould release length

0.02 mm 至 12 mm


0 ~ 200 mm/s

Printing Pressure

0.5kg -10Kg

Printing length

±250 mm(from center)

Cleaning system

Cleaning method Vacuum Dry Cleaning-Vacuum Wet Cleaning-Dry Cleaning (Programming Control)

Cleaning direction forth-back,Back and forth cleaning (programmed control)

Camera Parameter

Imaging area (FOV)

6.4mm x 4.8mm

Platform adjustment range


Datum point type

Standard shape reference point (see SMEMA standard), pad/hole

Camera System

Single camera, up/down single imaging vision system, geometric matching positioning

Function Parameter

Repetitive accuracy of image calibration

±10.0um @6 σ,Cp more than 2.0

Printing Repetition Accuracy

±20.0um @6 σ,Cp more than 2.0

Cycle time

Less than 7s

Product changing time

Less than 5 mins


Power Supply


Air supply

4~6Kg/cm2, 10.0mm tube

Operation System

Windows XP


L(1140mm)x W(1400mm)xH(1480mm)



Temperature humidity control systemOption

Temperature Control Range


Humidity Control Range



SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer, 600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.
