  • SMT PCB magazine Unloader

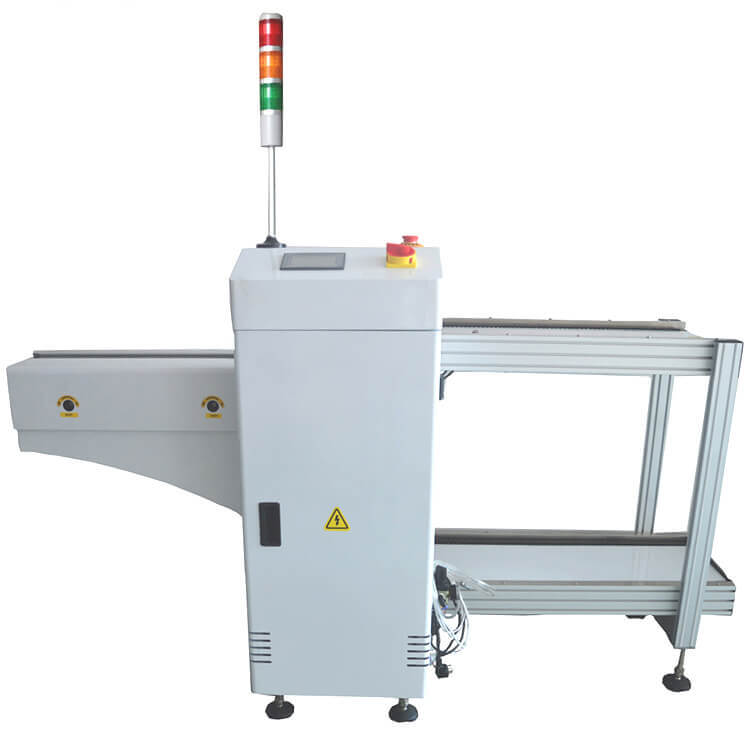

SMT PCB magazine Unloader

SMT PCB magazine Unloader

  • Demensions:1950(L)×680(W)×1650(H)mm
  • PCB size: 50x50 - 390x400mm
  • SMEMA compliant
  • Lift platform pitch selection:50pcs
  • Product description: SMT PCB magazine Unloader Factory, Demensions:1950(L)×680(W)×1650(H)mm, PCB size: 50x50 - 390x400mm, Lift platform pitch selection:50pcs

SMT PCB magazine Unloader Factory

Product Features:

SMT PCB magazine Unloader

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm


9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box



Auto Unloader





Auto SMT Unloader

1 Dimension:1950(L)×680(W)×1650(H)mm

2 Special aluminum guide rail and special chain;

3 90WSPG Brake motor drive the ball screw,Make Magazine lift;

4 Pneumatic clamping structure

5 Magazine Size :300(W)×340(L)×570(H)mm

6 PCB Size :60(W)×60(L)mm--390(W)×400(L)mm

7 Direction: R-L or L-R;

8?Lift platform pitch selection:10?20?30?40?50

9 Siemens PLC control system;

10 auto upper function;

11 Control panel is touch screen;

12 Power :0.25KW

13 Power supply:220V 50HZ

14 Air Supply:4-6MPa
