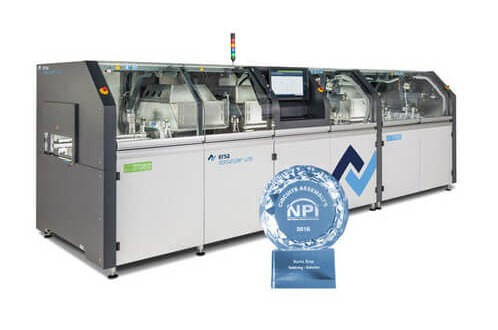

ERSA VERSAFLOW 4/55 Selective Soldering Machine

 ERSA VERSAFLOW 4/55 Selective Soldering Machine

Specifications:

 ERSA VERSAFLOW 4/55 Selective Soldering Machine

High end selective soldering system to integrate into in-line manufacturing concepts

Mini-wave soldering for high flexibility or multi-wave soldering (in preparation) for high volume applications

Product change without loss in production time with the multi-wave process (in preparation)

Processable area 20″ x 20″

Soldering module Y/Z variable

Versacam for height measurement on the fly

Versaflex soldering module X/Y/Z variable

Power convection for optimal homogenous preheats

Parallel process through separation of fluxing, preheating and soldering cycle

Use of up to 4 flux spray heads

Fluxer y-variable

Flexible system configuration on account of modularity of the design

Ideal for linking to manual workstations or peripheral equipment

Secure process control with monitoring of all relevant processes

CAD-Assistant for offline programming

Link for traceability systems for process control

Dimensions

Length from 2,600 mm

Width approx. 1,700 mm

Height approx. 1,600 mm

Conveyor support

Roller conveyor

PCB width: 63.5-508 mm

PCB length: 127-508 mm

Maximum PCB top side clearance: 120 mm

Maximumg PCB bottom side clearance: 30 mm

Maximum PCB weight: 5 kg (option 15 kg)

Media supply

Nitrogen

Pneumatic system

Electric supply

Extracted air

Flux module

Drop-Jet in different sizes

Preheat module

IR heating, convection or combination of IR and convection

Solder module

Electromagnetic solder pot
