  • Hanwha SM482 Plus

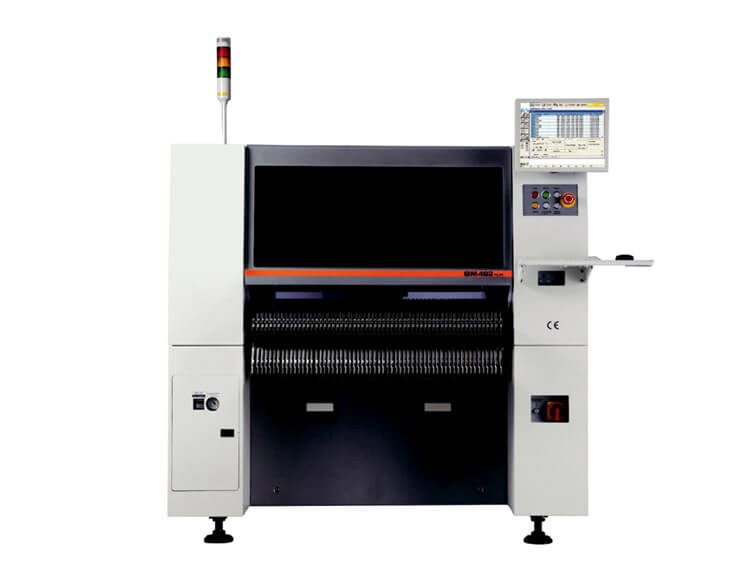

Hanwha SM482 Plus

Hanwha SM482 Plus

  • Speed : 30,000CPH (Optimum)
  • Structure : 1 Gantry x 6 Spindles/Head
  • component range:0402(01005)
  • PCB Size : L460xW400
  • Product description: Hanwha SM482 Plus Pick and Place Machine, Speed : 30,000CPH (Optimum), Structure : 1 Gantry x 6 Spindles/Head, component range:0402(01005), PCB Size : L460xW400
  • INQUIRY

Hanwha SM482 Plus Pick and Place Machine

Specifications:


1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

Top Advantage:
1. Advanced High Speed Flexible Mounter.
2. High Speed, High Precision and Electrically Driven Feeder.

3. New Vacuum System and Optimized Pickup/ Placement Motion.

Specifications
SAMSUNG SMT Pick and Place Machine
Model Name
SM471plus
SM481plus
SM482plus
Alignment
Flying Vision
Flying Vision+stage vision
Flying Vision+stage vision
Spindles
10 Spindles × 2 Gantries
10 Spindles × 1 Gantry
6 Spindles × 1 Gantry
Placement Speed
78,000CPH(Optimum)
40,000CPH(Optimum)
30,000CPH(Optimum)
Placement Accuracy
±40μ[email protected]μ±3σ
±40μ[email protected]μ±3σ
±40μ[email protected]μ±3σ
Applicable Parts
0402 ~ 14mm(H 12mm)
0402 ~ 42mm(H 15mm)
0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)
Max. 510 × 460(Standard)
Max. 460 × 400(Standard)
Max. 460 × 400(Standard)
Max. 610 × 460(Option)
Max. 1500 × 460(Option)
Max. 1200 × 510(Option)
Dimension(L.D.H)
1650×1690×1458
1650×1680×1530
1650×1680×1458
Mass(Kg)
Approx. 1820
Approx. 1655
Approx. 1600
