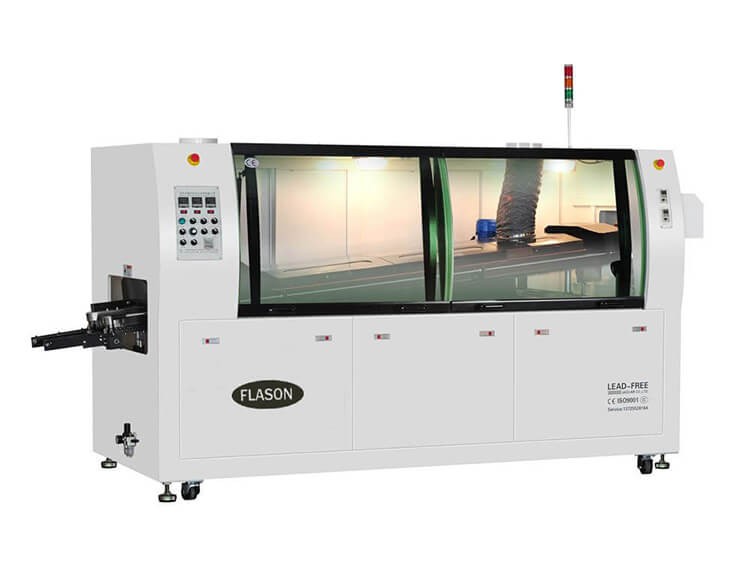

Hot Air wave soldering machine N300

Hot Air wave soldering machine N300

  • Weight: 1000KG
  • Dimensions: 3300(L)*1400(W)*1560(H)
  • spray fashion: SMC+ST 6 nozzle
  • Heating zone Length: 1600mm
  • Product description: Hot Air wave soldering machine, Weight: 1000KG, Dimensions: 3300(L)*1400(W)*1560(H), spray fashion: SMC+ST 6 nozzle, Heating zone Length: 1600mm
  • INQUIRY

Hot Air wave soldering machine N300

INTRODUCTION:



Hot Air wave soldering machine N300

1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.

4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

5. Titanium solder fingers, high strengthened double v-groove with tin resistant

6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.

8. PID close loop controlled hot air pre-heaters

9. Timer startup feature for solder pot, solder melted in within 90 minutes.

10. With black box memory function, the machine can always store the SPC data, improve work efficiency.

11. Automatic finger cleaner equipped.

12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No.

FLASON N300

Number of Pre-heaters

3

Pre-heater Passage

1450mm

Body size

2800(L)*1250(W)*1560(H)

Outside dimension

3600(L)*1250(W)*1560(H)

Weight

1000KG

Total/steady consumption

19KW/5-7KW

Air supply

0.5MPa

Preheater style

Hot air

Preheater consumption

220V 6KW

Control  method

PC +PLC/press keys/Touch screen

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder Application

Lead-free / Sn-Pb

Solder pot capacity

280KG

Solder pot temperature

300ºC

Solder pot consumption

380V 9KW

Solder temp. control method

PID&SSR

Wave motor power

1KW 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-300mm

Conveyor speed

0-1800mm/min

Conveyor direction

L-R (R-L optional)

Conveyor inclination

4-7 º

Flux pressure/capacity

3-5 bar/5.2L

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solutions !
B. life time Online Technical Support !
C. Free Online Installation Training Service !
