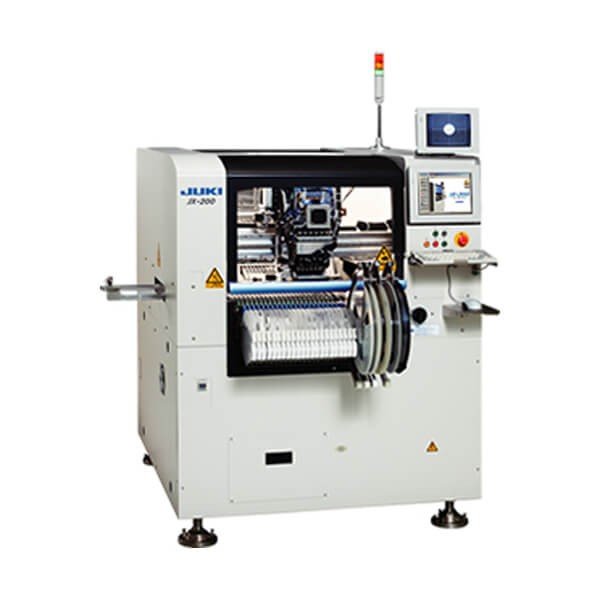

JUKI JX-200 Pick and Place Machine

JUKI JX-200 Pick and Place Machine

  • Max PCB:410mm× 250 mm
  • Mounting Speed: 18,050CPH
  • components ranging:0603~33.5mm
  • Product description: JUKI JX-200 Pick and Place Machine,Max PCB:410mm× 250 mm,Mounting Speed: 18,050CPH, components ranging:0603~33.5mm
  • INQUIRY

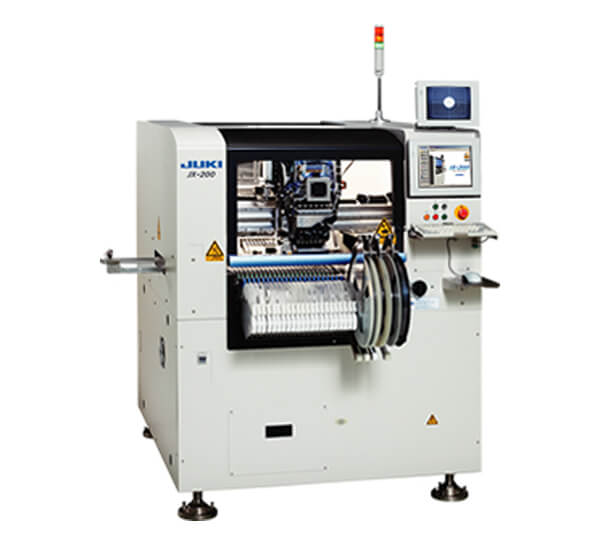

JUKI JX-200 Pick and Place Machine

Description:

JUKI JX-200 Pick and Place Machine

Placement Speed:

Chip : 18,050CPH(0.199Sec./chip/Optimum)/13,900CPH(IPC9850)
■   IC : 4,400CPH
■   Component size
Laser recognition : 0603 ※2 ~□33.5mm
Vision recognition Standard camera : □3mm~□33.5mm
High-resolution camera (option) : 1.0×0.5mm~□24.0mm
■   Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
■   high-speed and high precision placement technology
■   Superior Versatility
■   High Quality Placement Technology
■   Easy and Compact
■   Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)
※2 HMS is required when a 0603 component is placed. (option)

Board size Min.50 × 50 ~ Max.800*1 × 250mm
Component height 12mm
20mm
Component size Laser recognition 0603*2 ~ □33.5mm
Visionrecognition Standard camera □3mm ~ □33.5mm
High-resolution camera (option) 1.0 × 0.5mm ~ □24.0mm
Placement speed Chip Optimum 0.199Sec./chip (18,050 CPH)
IPC9850 13,900CPH
IC 4,400CPH
Placement accuracy Laser recognition ±0.05mm (±3σ)
Vision recognition ±0.04mm
Feeder inputs Max.60 on 8mmT/F
When using Longer sized PWB(800mm) option. (standard specification is Max.410mm)

HMS is required when a 0603 component is placed. (option)
