Home > JUKI Pick and Place Machine

  • JUKI KE-760 Pick and Place Machine

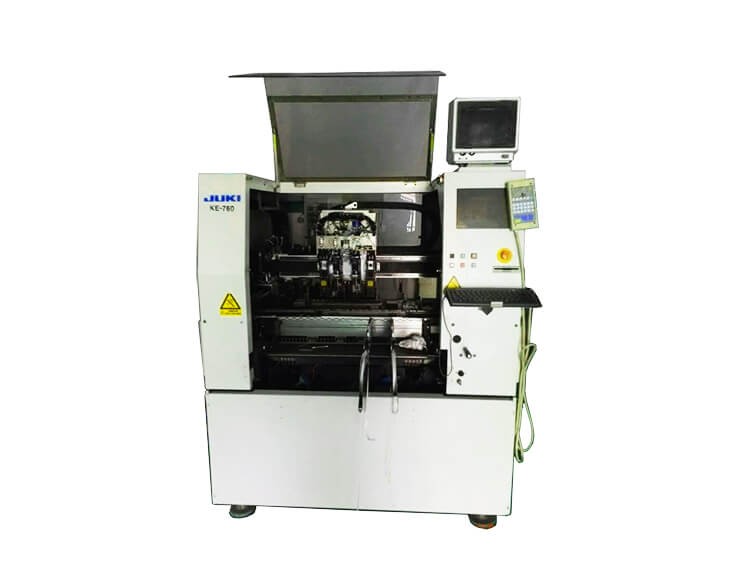

JUKI KE-760 Pick and Place Machine

JUKI KE-760 Pick and Place Machine

  • JUKI KE-760 Pick and Place Machine
  • Dimension:1400 × 1300 × 1551㎜
  • Component range: 0402 ~ 50 × 50㎜
  • Weight:1150KG
  • Product description: JUKI KE-760 Pick and Place Machine, Dimension:1400 × 1300 × 1551㎜, Component range: 0402 ~ 50 × 50㎜, Weight:1150KG
  • INQUIRY

JUKI KE-760 Pick and Place Machine

Description:

JUKI KE-760 Pick and Place Machine

Used JUKI760 placement machine is a medium-sized economy multi-functional placement machine,

generally about 1999 equipment,high rigidity rack,integrated casting molding,increased 40% rigidity,
the use of XY independent drive placement head,2 Placement head,laser alignment,the accuracy of 0.03MM.
As a second-hand economy equipment in IC placement accuracy few models can compete with it,
so the second-hand placement machine market is still welcomed by the majority of users,
it is very Suitable for low-cost investment and entrepreneurs.

Device parameters
Placement head: 2 placement head (at the same time,the adsorption attached alternately)
Mounting accuracy: ± 0.03mm / chip (laser recognition)
± 0.09mm / QFP (laser recognition)
Patch speed: 0.32 seconds / CHIP,1.8 / sec QFP)
Substrate size: Min 330 × 250 mm
Component range: 0402 ~ 50 × 50㎜
Power: Single-phase AC220V,50 / 60Hz,2.5KVA
Air pressure and air consumption: 0.5Mpa ± 10%,150N1 / min
Overall dimensions: 1400 × 1300 × 1551㎜
Weight: 1150㎏
feeder float detection
large compliment of nozzles included
both lasers in good shape and well within spec
60 feeders 8x4mm included
5 ‚ 12mm feeders included
5 16mm feeders included
