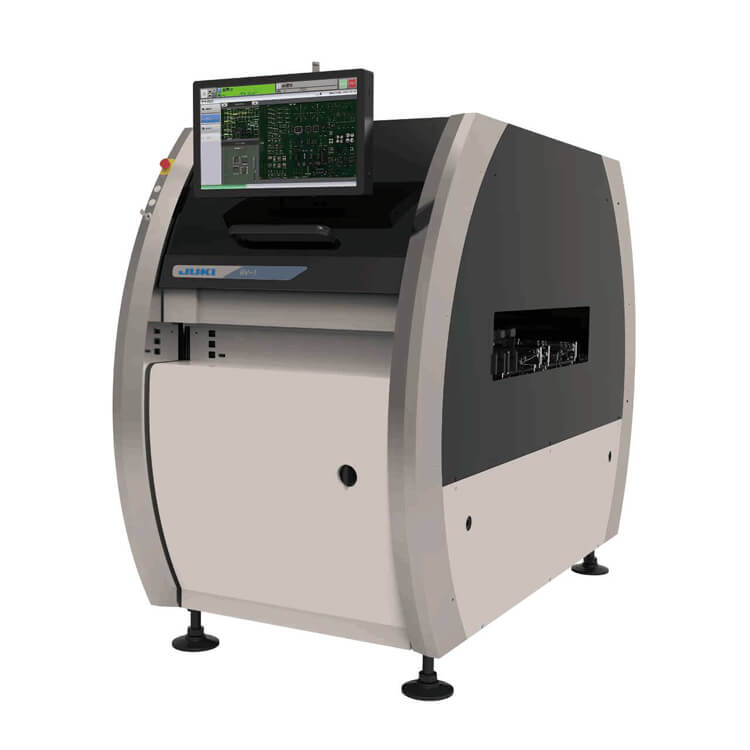

JUKI Visual Inspection Machine AOI/SPI RV-1
Specifications:
Clear Vision Capturing System
Model name
RV-1
PWB size
50mmx50mm - 510mmx300mm ( Dual lane )
Components
0402/0603 ( metric ), Cylindrical chip, tantalum capacitor, transistor, SOP/QFP, etc.
Inspection speed
15μm ( Standard resloution ),10μm ( High resolution)
Resolution
Omission, offset, polarity, reversed, no-solder,bridge, amount of solder, foreign material,etc.
Power supply
AC 3-ph 200-230V 2.0kVA / 0.49MPa 10Nl/min
Dimensions
W940mmxD1,975mmxH1,530mm
Wight
1,350kg
Worlds top-class high performance
Inspection speed = 0.14 sec/ frame
■ Easy programming
■ CCC ( Central Confirmation Control) *
■ SPC ( Statistical Process Control) *
■ Supports 3D inspection *
50mmx50mm - 510mmx590mm ( Single lane )
