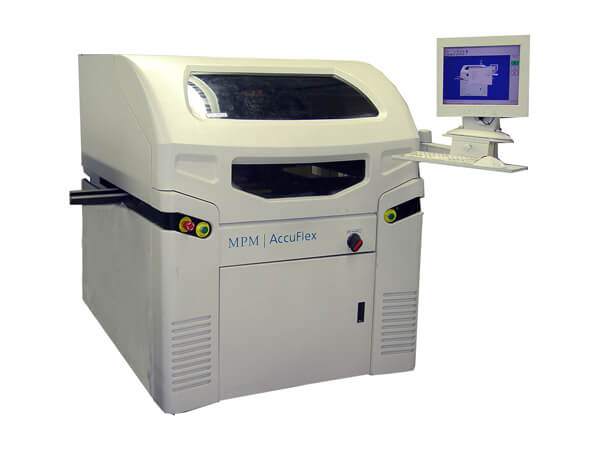

MPM AccuFlex SMT Screen Printer

Specifications:

The AccuFlex delivers all the features required for moderate volume / high mix printing, at a low cost. The AccuFlex is accuracy and flexibility in a compact footprint. It delivers clear value by providing only what's required for efficient, precise printing, while permitting the user to select from a full range of options to expand capabilities to meet current and future needs. It's an ideal introductory system and perfect for expanding production capacity.

MPM AccuFlex SMT Screen Printer Features:
6 sigma accuracy ensures precise and repeatable printing capability
11 second cycle time enhances line productivity
Large board capacity maximizes product flexibility: up to 23 x 20 in. (584 x 508 mm)
Automated product changeover capability increases production line uptime
Microsoft Windows 2000® operating system provides easy and intuitive user programming, and effective data management

Board Handling
Maximum Board Size (X x Y) 23" x 20" (584mm x 508mm)
Minimum Board Size (X x Y) 3" x 2" (75mm x 50mm)
Board Thickness 0.03" to 0.20" including warpage (0.8mm to 5.0mm) 0.008" to 0.15" (0.2mm - 3.8mm) - Optional
Maximum Board Weight 10 lbs. (4.5kg)
Minimum Board Edge Clearance 0.19" (5mm)0.12" (3mm) - Optional
Maximum Underside Clearance 0.59" (15mm)
Transport Speed Adjustable
Transport Height From Floor 34" - 38" (860mm - 960mm)
Transport Track Feed Direction Left-to-Right, Right-to-Left, Left-to-Left and Right-to-Right
Triple Track Conveyor Lengths 52" (1320mm), 60" (1524mm), 68" (1727mm)
Method of Board Hold-Down Positive edge-clamps (front and rear)
Method of Board Support Independent, moveable magnetic support pins
Print parameters
Maximum Print Area (X x Y) 22" x 19.6" (559mm x 498mm)
Snap-off Speed 0.008" - 0.39"/sec (0.2mm - 10mm/sec)
Print Speed 0.2" - 7.87"/sec (5mm - 200mm/sec)
Print Pressure Up to 44 lbs (20 kg)
Print Stroke 20" (508mm)
Stencil Frame Size 29" x 29" (737mm x 737mm) standard
Smaller Frame Accommodations By use of optional Adapters
Vision
Vision Field-of-View (FOV) 0.40" x 0.40" (10mm x 10mm)
Fiducial Types Standard shape fiducials. See SMEMA standards
Camera System Single roving camera module with dual beam optics
Performance
Vision Alignment Repeatability +/- 0.001” (+/- 0.025mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with glass plate capability test**
Vision Alignment Accuracy +/- 0.001” (+/- 0.025mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with CeTaQ™ CmController™ capability test**
Print Deposit Repeatability and Accuracy +/- 0.002” (+/- 0.050mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with CeTaQ™ CmController™ capability test*
Cycle Time Standard Performance 16.2 seconds***
Speed Enhancement Package 12.5 seconds***
Speed Enhancement Package 11.0 seconds***
and Triple Track Conveyor System
Facilities
Power Requirements 110 - 240V, 50/60Hz (+/-10%)
Air Supply Requirements 5 CFM at 90 psi, Clean Air Supply
Height 62"  (1575 mm)
Depth 57"  (1448 mm)
Width - Standard Performance 51.7" (1314 mm)
Width - High Performance 52" (1320 mm), 60" (1524 mm) 68" (1727 mm)
