  • Metal/Plastic/Stainless Steel 20W Fiber Laser Marking Machine

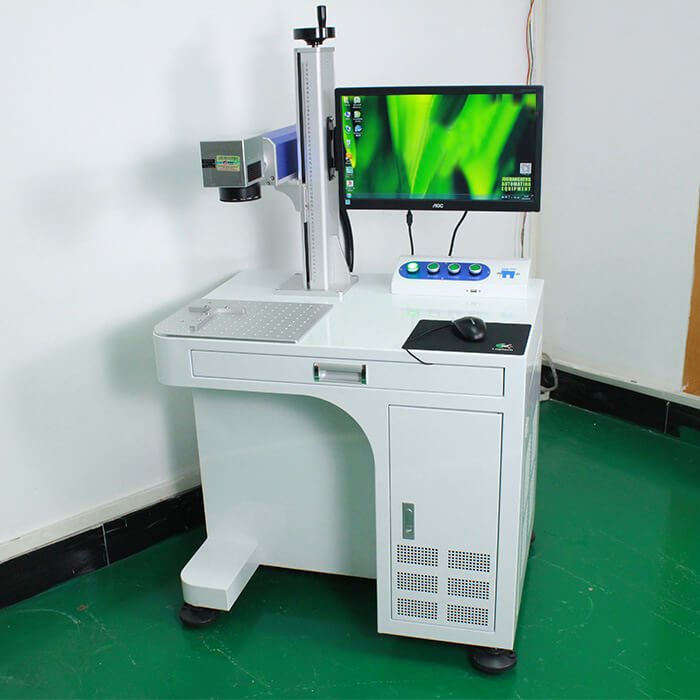

Metal/Plastic/Stainless Steel 20W Fiber Laser Marking Machine

Metal/Plastic/Stainless Steel 20W Fiber Laser Marking Machine

  • laser length 1060nm
  • Laser Power 10 / 20 / 30 / 50 / 100 W
  • Machine size About 650×800×1370mm
  • Machine weight About 110KG
  • Product description: Metal/Plastic/Stainless Steel 20W Fiber Laser Marking Machine, laser length 1060nm, Laser Power 10 / 20 / 30 / 50 / 100 W, Machine size About 650×800×1370mm, Machine weight About 110KG
  • INQUIRY

Metal/Plastic/Stainless Steel 20W Fiber Laser Marking Machine

Specifications:

1. Marking / engraving text, logo, serial number, image, photo, bar code and PCB QR code etc
2. All kind of metal, alloy marking,such as Stainless Steel, Brass, Aluminium, Steel, Iron etc.
3. Mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon, (plastic ,keyboard, auto mobile components, IT components etc.).
4. Coating removal for glass, plastic, silicon.
5. Control software running on the WINDOWS operating system, easy to operate.
6. Compatible with AutoCAD, Coreldraw, Photoshop and other software formats, such as PLT, AI, DXF, DWG, BMP, JPG.
7. For serial number, bar code and other online flight marking, with automatic jump function.

Model

LM-101

Machine Name

Fiber Laser Marking Machine

laser length

1060nm

Laser Power

10 / 20 / 30 / 50 / 100 W

Laser repetition rate

0kHz - 100 kHz

Minimum linewidth

0.012mm

Marking speed

≤10000mm/s

Marking depth

≤0.5mm(According to the materials)

Repeatability precision

±0.003mm

Marking Range

110mm X 110mm,175mm X 175mm,300mm X 300mm(optional

Machine size

About 650×800×1370mm

Machine weight

About 110KG

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven Manufacturer, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT Inspection Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]


FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
