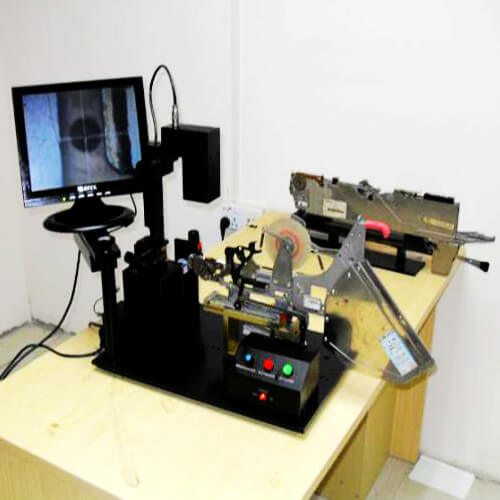

Panasonic CM202 Feeder Calibration jigs

Products description


1.With simple structure, simple operation, and optimized function. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency.

2.High accurate inspection. Pick up position, height, all can be measured with accuracy so that can better measure the quality.

3.With 10 inch LED display, circled LED lighting, 50X CCD, tight structure.

4.Simple operation, can simulate the SMT machine, monitor
The pickup position continuously automatically, so can better understand the feeder running quality in order to control the casting rate.

5.Machine Model: Panasonic CM202 Feeder Calibration,You can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;

6.Feature:

1) Accurate X-Y axis adjustment.
2) Direct adjusted axis camera
3) Imbed 220V DC
4) Automatic and manual step function
5)Super bright LED display
6) precise control fixtures feeders;
7)precise 8mm,12mm,16mm and 24 mm feeders control band.


CM402/602/NPM Feeder

CM402/602 8mm 0201

N610031080AA

CM402/602 8mm with sensor

KXFW1KS5A00

CM402/602 8mm  without sensor

KXFW1KSBA00

CM402/602 12/16mm with sensor

KXFW1KS6A00

CM402/602 12/16mm without sensor

KXFW1KSCA00

CM402/602 24/32mm with sensor

KXFW1KS7A00

CM402/602 24/32mm without sensor

KXFW1KSDA00

CM402/602 24/32mm Deep groove

KXFW1LOYA00

CM402/602 44/56mm with sensor

KXFW1KS8A00

CM402/602 44/56mm without sensor

KXFW1KSEA00

CM402/602 44/56mm Deep groove

KXFW1LOTA00

CM402/602 72mm with sensor

KXFW1KS9A00

CM402/602 72mm without sensor

KXFW1KSFA00

CM402/602 72mm Deep groove

KXFW1LOZA00

CM402/602 88mm with sensor

KXFW1KS10A00

CM402/602 88mm without sensor

KXFW1KSEA00

CM402/602 stick feeder

KXFW1KSRA00


BM Feeder

BM

8W*2P

10896BF101

Double

BM

8W*2P

N610014231AA

Double

BM

8W*4P

10896BF106

Double

BM

8W*4P

N610016060AA

Double

MSF

8W*2P

10896BF061

Double

MSF

8W*4P

10896BF066

Double

BM

8W*2P

10896BF074

Single

BM

8W*4P

10896BF071

Single

BM

12MM

FAE1200MA300

BM

16MM

FAE1600MA300

BM

24MM

FAE2400MA300

BM

32MM

FAE3200MA300

BM

44MM

FAE4400MA300

BM

56MM

FAE5600MA300
