SMT Camera Module Cleaning Machine CMC

SMT Camera Module Cleaning Machine CMC

  • Cleaning method Two fluid cleansing
  • Cleaning plate specifications Custom
  • Equipment dimensions 880mm(L)×960mm(W)×1880mm
  • Net weight of machine 450KG
  • Product description: SMT Camera Module Cleaning Machine CMC, Cleaning method Two fluid cleansing, Cleaning plate specifications Custom, Equipment dimensions 880mm(L)×960mm(W)×1880mm, Net weight of machine 450KG
  • INQUIRY

SMT Camera Module Cleaning Machine CMC

Product Introduce:


SMT Camera Module Cleaning Machine CMC

Machine Introduction:

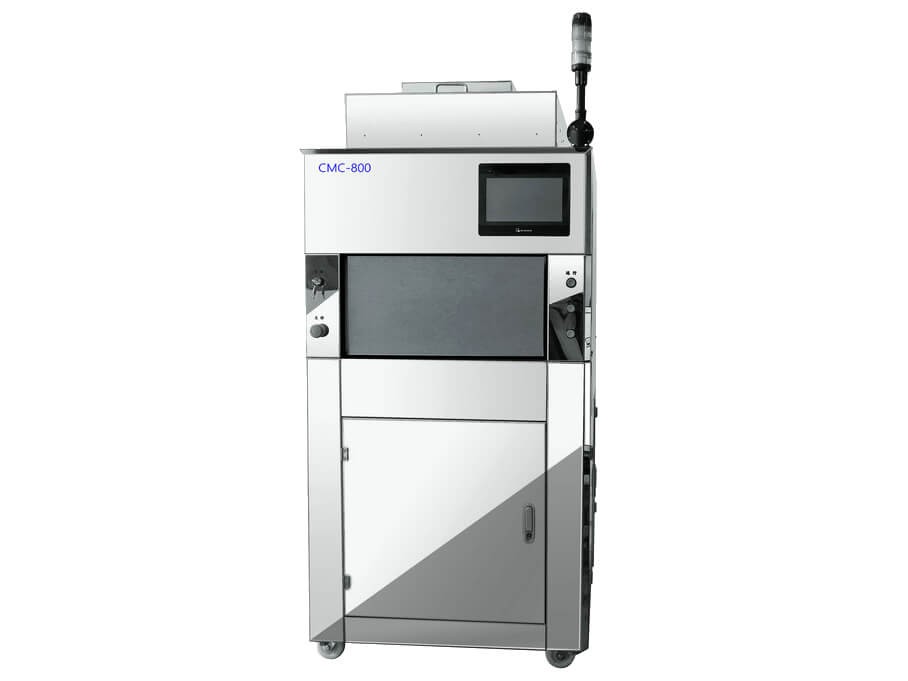

CMC-800 is a camera module professional cleaning machine for the camera products, such as wafer, CMOS, Holder and other surface dust cleaning.
Machine Features:
1.the camera class module surface dust, impurities for cleaning machines;
2.mirror stainless steel integration closed body, no pollution of the working environment, suitable for use of clean room requirements;
3.can replace the cleaning plate cleaning a variety of products, cleaning discs by product custom;
4.PLC automatic control, easy to operate;
5.transparent explosion-proof front door, safe operation, easy to observe;
6.the whole system instrument display, at any time to monitor the cleaning situation;
7.the use of two fluid cleaning, cleaning high precision, zero damage to the product, pure water consumption is minimal;
8.rotating spray bar, to avoid secondary pollution products;
9.equipped with static elimination device, cavity wall heating device, auxiliary cleaning to achieve the best results;
10.equipped with 2 air filtration system, compressed air in line with ISO8573, 1 standard;
11.body compact, small footprint;
12.full use of ultra-pure water cleaning, RoHS-compliant.

Machine Specifications:

Equipment dimensions

880mmL×960mmW×1880mmH

Cleaning plate specifications

Custom (cleaning disc diameter <ø550mm)

Cleaning method

Two fluid cleansing

Dry way

High-speed centrifugal drying

power supply

AC380V 50HZ

Total power

7KW

power consumption

When cleaning: 3.5kw / h

Standby: 1kw / h

Drive horsepower

3HP

Environmental filtering

0.3μm99.999%

Air filter

1μm×10.01μm×1

Centrifugal speed

100-1500RPM

Pure water consumption

0-7L/Min

Gas consumption

10-30m³/H

Cleaning pressure

Liquid pressure: 3-8Kgf / cm² Air pressure: 0.2-0.5Mpa

DI water supply

Flow:> 7LPM Resistivity:> 17MΩ

Air supply

Pressure: 0.45-0.7Mpa; flow:> 30m ³ / H (cleanliness meet the cleaning requirements)

Pure water inlet diameter

Ø12mm hose or PT1 / 2 "internal thread

Air inlet diameter

Ø12mm trachea

Drain outlet diameter

PT 1 "internal thread

Outlet diameter

4 "× 2 (need to strengthen the ventilation, wind speed greater than 3m / sec)

Net weight of machine

450KG
