  • SMT Mis Print PCB Cleaning Machine SME-210
SMT Mis Print PCB Cleaning Machine SME-210

SMT Mis Print PCB Cleaning Machine SME-210

  • Clean basket size L420 x W420 x H200 (mm)
  • Clean tank capacity 50L
  • Clean time 4~10min
  • Machine weight 210KG
  • Product description: SMT Mis Print PCB Cleaning Machine SME-210, Clean basket size L420 x W420 x H200 (mm), Clean tank capacity 50L, Clean time 4~10min, Machine weight 210KG
  • INQUIRY

SMT Mis Print PCB Cleaning Machine SME-210

Product Introduce:

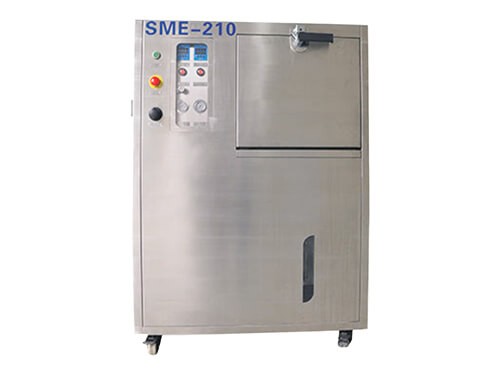

SMT Mis Print PCB Cleaning Machine SME-210

Machine Description:
SME-210 pneumatic PCB Auto Cleaning Machine is designed to clean mis print PCB solder paste, squeegee. Driven by compressed air, the machine clean PCB from upper and lower side, by “One button” easy operation, the machine complete “clean + dry “process automatically; patent designed rotation rods guarantee efficient clean and high quality cleaning result.
Machine Features:
1.SUS 304 machine structure, resist Acid and Alkali corrosion.
2.Totally Driven by compressed air , no electric power, totally no fire or explosion risk caused by electrical spark .
3.One button easy operation, clean and dry complete automatically.
4.Push-pull cleaning basket, easy to put and take out cleaning parts, no need special jigs.
5.Equipped auto liquid fill in and discharge function.
6.Liquid recycle use to ensure low consumption.
7.Inner-lock safety door, once open, machine stopped immediately to ensure operator safety.
8.3-level precise filtering system to make liquid clean by recycled use.
9.Super well-known Pneumatic parts from all over the word ensure stable use of the machine.
10.Modular design ensure easy maintenance.
Machine Spec:

Item

SME-210 Spec

Clean basket size

L420 x W420 x H200 (mm)

Clean tank capacity

50L

Clean time

4~10min

Dry time

4~10min

Air supply

0.5~0.7Mpa

Air consumption

200~600L/min

Clean method

360°rotation spray solvent clean+ air blow dry

Filter system

20um/5um/1um 3-level filter

Machine size

L1060 x W800 x H1600(mm)

Machine weight

210KG

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solutions !
B. life time Online Technical Support !
C. Free Online Installation Training Service !
