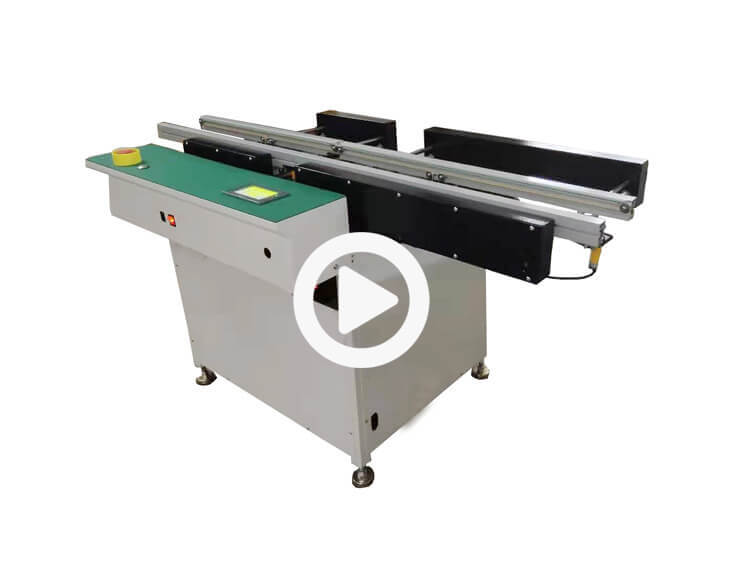

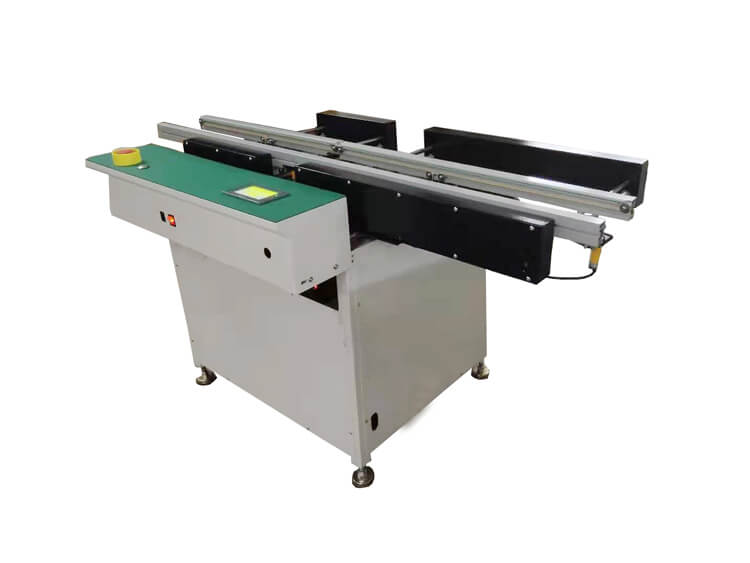

SMT Retractable Conveyor

SMT Retractable Conveyor

  • Expansion Size 580mm
  • PCB Width: 50 to 350 mm
  • Outline dimensions 1500*750*900mm
  • Weight 150KG
  • Product description: SMT Retractable Conveyor, Expansion Size: 580mm, PCB Width: 50 to 350 mm, Outline dimensions: 1500*750*900mm, Weight 150KG

SMT Retractable Conveyor

Product Features:

SMT Retractable Conveyor

1.The width adjustment of standard precision screw rods easy adjustment width

2.Professional wear-resistant anti-static flat belt and dedicated aluminum profile guide rail are used to ensure smooth connection and stable transportation;

3.The standard equipped signal cable(SMEMA) can be connected online with other equipment

4.Retractable Conveyor with different rail lengths can be customized according to customer requirements

5.The work surface is equipped with anti-static rubber to better prevent static electricity;

6.The transmission motor uses two 42 * 48 stepper motors

Technical parameters


Retractable Conveyor

Outline dimensions


PCB width


Transport height


PCB transport direction


PCB transport Speed


Expansion Size


Expansion Control

PLC Control


Stepper motor

Expansion method

Two key conrol

Power supply

AC220V1P 50/60Hz

Power consumption


Track length


Control mode

PLC+touch screen




Dual line wire

Single lane

1 fixed2nd moving
