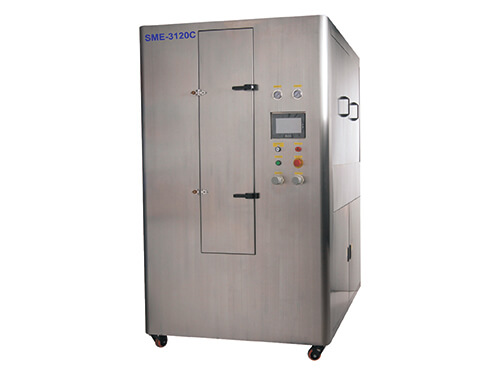

SMT Screen Cleaning Machine SME-3120C

SMT Screen Cleaning Machine SME-3120C

  • Max Screen Size 1200 x 1200 x 40mm
  • Solvent tank 50L
  • Clean time 4~8min
  • Machine weight 460KG
  • Product description: SMT Screen Cleaning Machine SME-3120C, Max Screen Size 1200 x 1200 x 40mm, Solvent tank 50L, Clean time 4~8min, Machine weight 460KG
  • INQUIRY

SMT Screen Cleaning Machine SME-3120C

Product Introduce:


SMT Screen Cleaning Machine SME-3120C

Machine Description:
SME-3120C Screen Cleaning Machine is special designed to clean solder mask ink on Screen. Only use Na2Co3 liquid and water, it can save up to 90% cost compare with using traditional solvent.PLC control, easy operation, good clean result.
Machine Features:

1.Special design for PCB soldering mask printing in screen.
2.NACO3 aqueous detergent , not use traditional solvent, make it cost dow to 90%.
3.Safe clean, no flash point, no abnormal smell.
4.Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
5.PLC control, Touch panel operation, One-key operation, clean, resin and dry process complete automatically according to pre-setting time procedure
6.NACO3 clean+ water resin
7.Multi-level precise filtration system, Solvent repeated use in the machine.
8.Standard equipped with auto solvent fill in and drain out function.
9.Cut off  10% printing defect, significantly improve printing quality
10.NACO3 detergent can be used repeatedly.
Machine Spec:

Item

SME-3120C Spec

Max Screen Size

1200 x 1200 x 40mm( Lx W x H)

Solvent tank

50L

Clean time

4~8min

Resin time

1~2min

Dry time

3~5min

Air consumption

800~1000L/min

Air supply

0.5~0.7Mpa

Air vent size

Φ124 × H30 (mm)

Filter system

3-Level filtration system

Clean mode

360°Rotation Clean +Rinse + Dry

Machine size

L1550 x W1050 x H 2150(mm)

Machine weight

460KG
