  • Vacuum SMT Reflow Oven KC-Z104
Vacuum SMT Reflow Oven KC-Z104

Vacuum SMT Reflow Oven KC-Z104

  • PCB: 400mm*350mm
  • 10 heating zones
  • Weight APPROX:2500KG
  • Dimension L6025×1350×1500mm
  • Product description: SMT Reflow Oven KC-Z104, PCB: 400mm*350mm, 10 heating zones, Weight APPROX:2500KG, Dimension L6025×1350×1500mm
  • INQUIRY

Vacuum SMT Reflow Oven KC-Z104

Specifications:

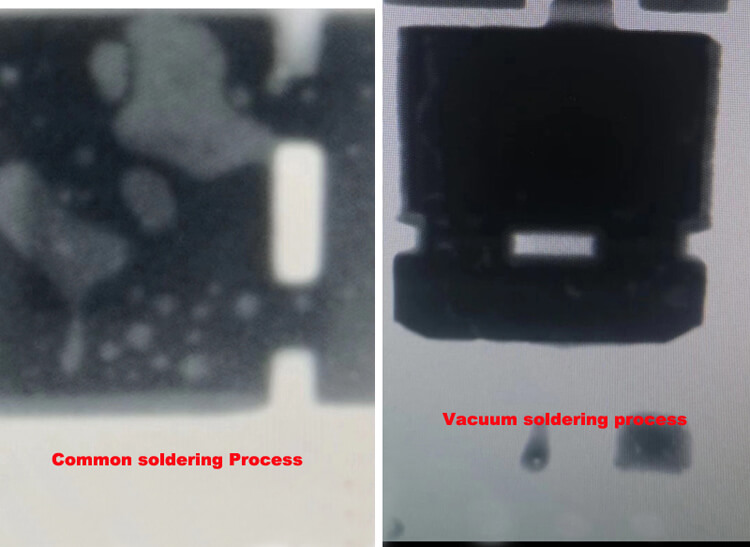

The Vacuum Reflow Oven Soldering theory is make a vacuum environment at the soldering area

Features:

Model

KC-Z104

Weight

APPROX:2500KG

Dimension

L6025×1350×1500mm

Heating zone qty.

Top10/ bottom 10

Cooling zone qty.

Top 4/ bottom 4

Cooling way

Forced water cooling

Rectifying plate structure

Carbon heating plate

Exhausting requirement

10/min×2

Control system

Power supply

3P 380V 50/60HZ

Total power

54KW

Startup power

38KW

Consumption power

12KW

Speed adjusting

3 sections with 3 inverters

Warm up time

Apprx.20minute

Temp. control range

Room temp.300℃ (adjustable)

Temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Data store

Can store unlimited setting parameters

Abnormal alarm

High temp., low temp., conveying, vacuum pressure,   nitrogen, air volume, PCB entering abnormal

Conveying system

Rail structure

Separately controlled in 3 sections

PCB   max. width

400mm*350mm

Conveyor height

900±200MM

Conveying way

Chain

Vacuum system

Vacuum min. pressure

0 .1MP

Vacuum pump power

3KW rotary vane wet

Vacuum pressure relief time

10S

Vacuuming time

10-300S

Vacuum chamber open way

Electric

Vacuum chamber size

500*400*300mm

Production beat

20S

Nitrogen system (option)

Nitrogen period

The whole production time

Nitrogen concentration

500-1000PPM

Nitrogen consumption

15-30m³



Keywords:

SMT Reflow Oven, Lead free SMT Reflow Oven, Reflow Oven Manufacturer, LED Reflow Oven, Nitrogen Reflow Oven, Dual Lane Reflow Oven, China Reflow Oven.
