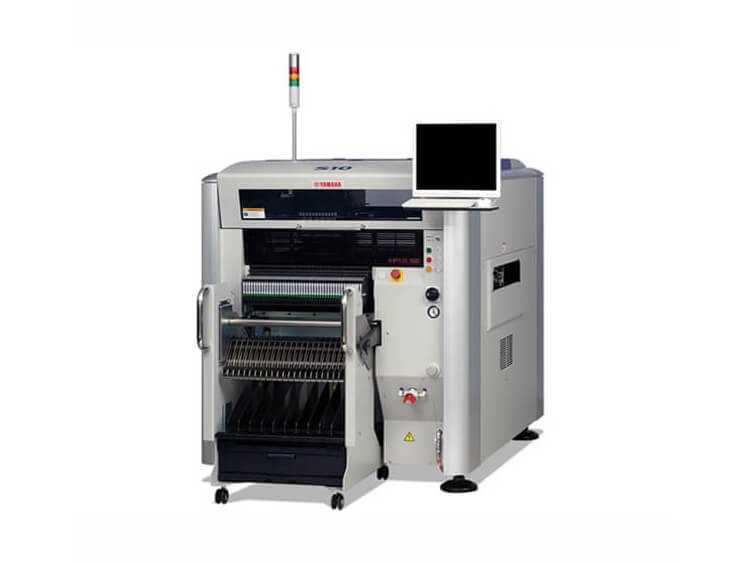

Yamaha S10 Pick and Place Machine

Specifications:

S10 3D Hybrid Modular Surface Mounter
Ultimate Flexibility to realize 3D MID* Placement
· Enhancement to 3D MID
· Large board handling capability
· Wide ranging component handling capability and high feeder capacity
· Ultimate flexibility and fast & easy setup
3D MID: Molded Interconnect Device
Specifications

	S10
Board size(with buffer unused)	Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955)
Board size(with input or output buffer used)	Min. L50 x W30mm to Max. L420 x W510mm
Board size(with input and output buffers used)	Min. L50 x W30mm to Max. L330 x W510mm
Board thickness	0.4 - 4.8mm
Board flow direction	Left to right (Std)
Board transfer speed	Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond.	0.08sec/CHIP (45,000CPH)
Placement accuracy A (+3)	CHIP +/-0.040mm
Placement accuracy B (+3)	IC +/-0.025mm
Placement angle	+/-180 degrees
Z axis control / Theta axis control	AC servo motor
Component height	Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components	0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package	8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check	Vacuum check and vision check
Screen language	English, Chinese, Korean, Japanese
Board positioning	Board grip unit, front reference, auto conveyor width adjustment
Component types	Max 90 types (8mm tape), 45 lanes x 2
Transfer height	900 +/- 20mm
Machine dimensions, weight	L1250xD1750xH1420mm, Approx. 1,200kg

*1 Board thickness + Component height = Max 30mm

Specifications and appearance are subject to change without prior notice.
