  • Yamaha YSM10 ALF feeder

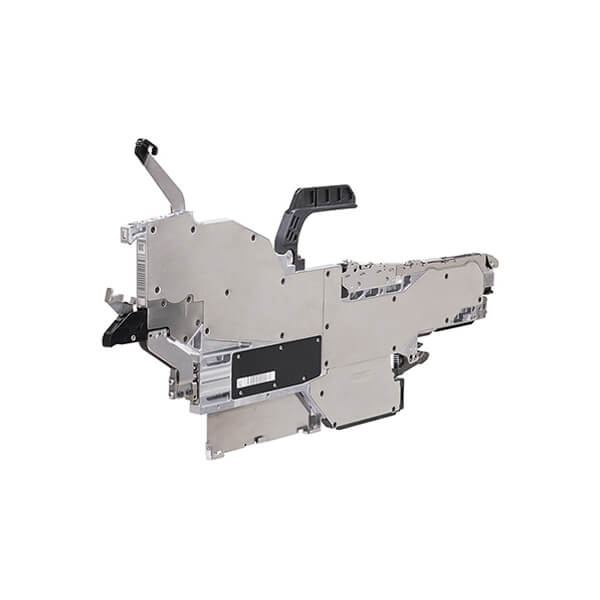

Yamaha YSM10 ALF feeder

Yamaha YSM10 ALF feeder

  • SMT Feeder
  • Yamaha YSM10 ALF feeder
  • Yamaha feeder
  • Applicable components:1005 to 3216
  • Product description: Yamaha YSM10 ALF feeder with tape cutter,Feed pitch setting 2mm/4mm,Reel width 14.4mm or less, φ382mm or less

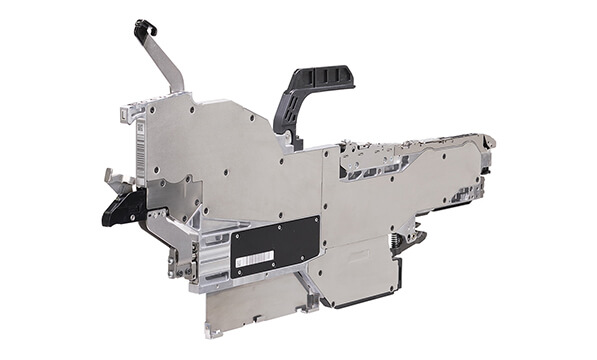

Yamaha YSM10 ALF feeder


Yamaha YSM10 ALF feeder

Revolutionizes feeding tape components by eliminating reliance on user skill.
Any operator to easily supply tape components by merely inserting the tape, all without stopping the machine.
Yamaha’s unique center-open system, which eliminates the need to remove the top tape, reduces pick-up errors due to static peeling charge and fuzz.
Yamaha-exclusive tape setting mechanism that extends towards the operator to simplify tape setting and a mechanism that allows for two reels to be set at once on the feeder greatly improves ease of use for the operator.


Compatible tape

Width 8mm, Maximum thickness 1mm
* There are restrictions. Please contact us for more details. Material Paper/(Emboss * In development)
* Pressure Sensitive Adhesive Cover Tape (PSA) can not correspond.

Applicable reel specifications

"Feed pitch setting 2mm/4mm
Reel width 14.4mm or less, φ382mm or less
When using applicable reel holder, Reel width 13.6mm or less, φ178mm or less.

8mm-converted installation occupied width

12mm pitch

Loadable minimum tape length

400mm or more

Applicable components

1005 to 3216

Feeder type

4 types S (1005)/M (1608)/L (2012)/LL (3216)

Tape loading time

Approx. 5 sec
* From tape feed start to pickup preparation completion.

Compatible mounter

YS/YSM series with tape cutter

External dimension (excluding projections)

L 549 x W 11.5 x H 278mm


Approx. 1.50kg

Yamaha YSM10 ALF feeder

KLJ-MC200-000 YAMAHA ZS Feeder 12mm

KLJ-MC300-000 YAMAHA ZS Feeder 16mm
KLJ-MC400-000 YAMAHA ZS Feeder 24mm
KLJ-MC500-000 YAMAHA ZS Feeder 32mm
KLJ-MC600-000 YAMAHA ZS Feeder 44mm
KLJ-MC700-000 YAMAHA ZS Feeder 56mm
KLJ-MC800-000 YAMAHA ZS Feeder 72mm
KLJ-MC900-000 YAMAHA ZS Feeder 88mm KHJ-MC100-000 YAMAHA SS Feeder 8mm
KHJ-MC200-000 YAMAHA SS Feeder 12mm
KHJ-MC300-000 YAMAHA SS Feeder 16mm
KHJ-MC400-000 YAMAHA SS Feeder 24mm
KHJ-MC500-000 YAMAHA SS Feeder 32mm
KHJ-MC600-000 YAMAHA SS Feeder 44mm
KHJ-MC700-000 YAMAHA SS Feeder 56mm
KHJ-MC800-000 YAMAHA SS Feeder 72mm
KHJ-MC900-000 YAMAHA SS Feeder 88mm
KHJ-MC100-003 SS 4mm
KHJ-MC100-001 SS 8mm
KHJ-MC100-002 SS 8mm
KHJ-MC100-003 SS 8mm
KHJ-MC100-004 SS 8mm
KHJ-MC100-005 SS 8mm
KHJ-MC100-006 SS 8mm
KHJ-MC200-002 SS 12/16  mm
KHJ-MC400-002 SS 24mm
KHJ-MC500-001 SS 32mm
KHJ-MC600-001 SS 44mm
KHJ-MC700-001 SS 56mm
KHJ-MC800-001 SS 72mm
KHJ-MC900-001 SS 88mm
KHJ-MC800-001 SS 72mm
KHJ-MC900-001 SS 88mm

STOPPER PIN (..K87-M111F-100)
SPROCKET ASS'Y (..KW1-M1120-000)
SPRING (..KW1-M119P-000)
SPRING (..KW1-M119K-000)
SPRING (..KW1-M111E-001)
SCREW FLAT HEAD (..K87-M111P-000)
if there is no  product that you need,please contact me directly.
