Home > SMT Stencil Printer

  • ASM DEK TQ SMT Stencil Printer

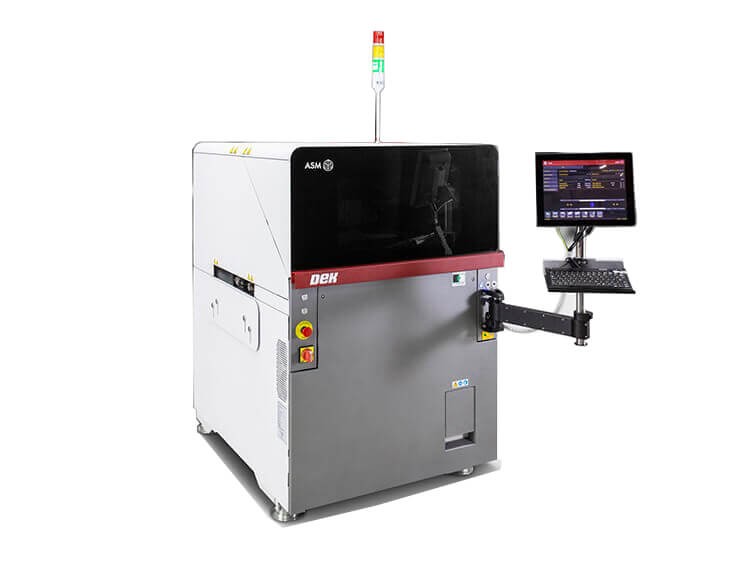

ASM DEK TQ SMT Stencil Printer

ASM DEK TQ SMT Stencil Printer

  • Max PCB: 400x400 mm
  • Core cycle time:5 secs
  • Wet print capability > 2,0 Cpk @ ±17,5 μm
  • Demision:1300mm×1000mm×1600mm
  • Product description: ASM DEK TQ SMT Stencil Printer, Max PCB: 400x400 mm, Core cycle time:5 secs, Demision:1300mm×1000mm×1600mm, Wet print capability > 2,0 Cpk @ ±17,5 μm

ASM DEK TQ SMT Stencil Printer


ASM DEK TQ SMT Stencil Printer

Maximum performance for the integrated smart factory

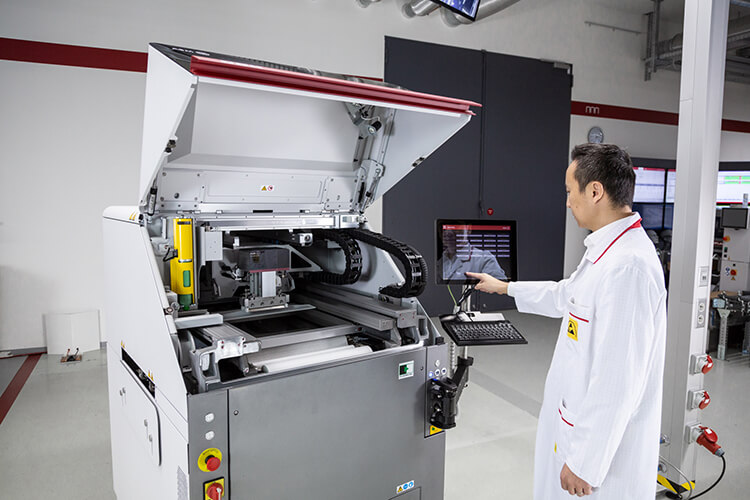

The DEK TQ marks the next generation of stencil printers. Newly designed from the ground up, this new generation of DEK printers is faster, more precise, more powerful with extremely low maintenance and high production uptime, and easy to integrate into your assembly line. New linear drives, off-belt printing and innovative clamping system ensure a new level of accuracy and deliver a stable printing process – even for the latest 0201 metric components. In the new DEK TQ, precision and speed are inseparable to meet your future requirements. A new 3-stage transport and the unique ASM NuMotion controller with fiberoptic based communication reduce the cycle time to 5 seconds and deliver high-precision performance in the smallest possible footprint.
DEK TQ Innovations
Newly developed Under Stencil Cleaner
Extra-large fabric roll, easily replaceable cleaning body, new dispenser system for the cleaning media, independent linear driven axis and non-stop cleaning fluids supply
Innovative printhead
Integrated paste height controller, fully automated paste dispenser and new improved squeegee pressure controller
New 3-stage transport system
Flexible 3-stage board conveyor system with linear drives, ASM NuMotion controller, new clamping system and off-belt printing
These innovations give you competitive advantages:
Maximum throughput
Core cycle time: 5 seconds
Maximum precision and printing quality
Best solder paste printing for the latest generation of extra-small components like 0201 metric
System alignment capability up to ± 12.5 µm @ 2 Cmk
Wet print accuracy up to ±17.5 µm @ 2 Cpk (measured and certified by the external AVS system before delivery of each DEK TQ)
Fast and flexible 3-stage transport
Fully flexible 3-stage transport system with innovative clamping and off-belt printing for fast, precise and stable print process
Up to 8 hours without assist
New USC with extra-large fabric roll and cleaning fluid supply, new printhead with new paste management system
Open, easy to integrate
IPC-Hermes-9852, closed-loop to SPI, ASM OIB, IPC CFX
Efficient programming
Fully new intuitive software and offline ASM Printer Programming
Best floorspace performance
Only 1.3 square meter footprint
Back-to-back setup
The perfect solution for dual-lane lines

Machine type


Standard configuration


Machine alignment capability

> 2,0 Cmk @ ±12,5 μm, (±6 sigma)

Wet print capability

> 2,0 Cpk @ ±17,5 μm, (±6 sigma)

Core cycle time

5 secs

Maximum print area

400 mm (X) × 400 mm (Y) (single-stage mode)

Machine control

NuMotion control System

Camera positioning

Linear motors and high-precision encoders

Squeegee pressure mechanism

Software-controlled, motorised with closed-loop feedback

Stencil positioning

Automatic loading incorporating squeegee drip tray

Substrate size (min.)

50 mm (X) × 40,5 mm (Y)

Substrate size (max.)

250 mm (X) × 400 mm (Y) (3-stage mode)

400 mm (X) × 400 mm (Y) (single-stage mode)

400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions)

Approximate dimensions

1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H)
