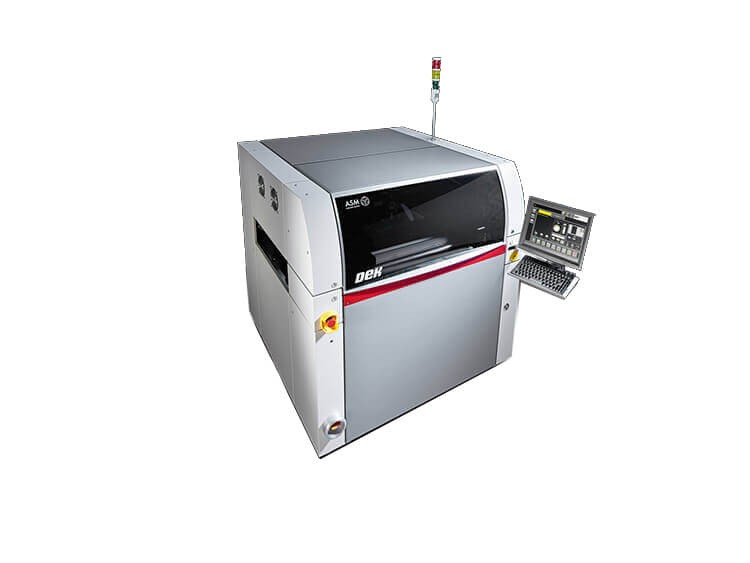

DEK NeoHorizon
With its modular design, the latest generation of our powerful screen printers is customizable for any customer-specific or application-specific requirements. Clamping systems, conveyors, tooling, paste management, verification – the DEK NeoHorizon can be equipped and/or retrofitted with many powerful and precision-enhancing options. All this flexibility can be controlled easily and comfortably with the leading printer software: DEK Instinctiv™ V9.
Two basic printer configurations are available: The DEK NeoHorizon 03 iX with the DEK HawkEye 750 camera system, semi-automatic stencil load and the IUSC understencil cleaning system features a core cycle time of 8.0 seconds and a machine accuracy of ±20 µm @ 2 Cmk for use in high-mix environments. The DEK NeoHorizon 01 iX with its core cycle time of 6,5 seconds and enhanced machine accuracy of ±15 µm @ 2 Cmk was designed for applications with particularly high demands on quality and throughput, for example for 0201 (metric) components. This configuration is equipped with the high-resolution DEK HawkEye 1700 camera, a fully automatic stencil alignment system, and the high-end DEK Cyclone understencil cleaning system.
Back-to-back: Single-track, dual-track, and back to single-track
The innovative design of the new printer and its especially robust cover make it possible to perform all control and maintenance operations from the front of the machine. As a result, you can now position two DEK NeoHorizons back-to-back for a dual-track solution that’s smart, flexible and future-proof. The two machines can nevertheless be configured and operated independently of each other. And when the dual-track solution is no longer needed, you simply separate the two printers and use them on separate lines again. The perfect combination of flexibility and investment protection.

Technical Data:

Standard configuration	DEK NeoHorizon 01iX	DEK NeoHorizon 03iX
Machine alignment capability	± 12.5 μm @ 2.0 Cmk (6 sigma)	± 12.5 μm @ 2.0 Cmk (6 sigma)
Machine alignment accuracy	± 15 μm @ 2.0 Cmk (± 6 sigma)	± 20 μm @ 2.0 Cmk (± 6 sigma)
Process alignment accuracy	± 20 μm @ 2.0 Cpk (6 sigma)#	± 25 μm @ 2.0 Cpk (6 sigma)#
Standard cycle time	6.5 seconds + process	8 seconds + process
Maximum printing surface	510 mm (X) × 508,5 mm (Y)
User interface	Touchscreen, keyboard and trackball, DEK Instinctiv V9 software
Camera	DEK HawkEye 1700 digital camera with 2-way LED illumination	DEK HawkEye 750 digital camera with 2-way LED illumination
Squeegee adjustment	Motorized with squeegee pressure feedback
Stencil loading	Automatic, incl. squeegee drip catcher	Semi-automatic,incl. squeegee drip catcher
Stencil alignment	Motorized (actuators); aligned on X- and Y-axis and rotation	Motorized (actuators); aligned in X- and Y-axis and rotation
DEK ProFlow	Optional
Understencil Cleaning	DEK Cyclone 300 mm/400 mm/515 mm	DEK IUSC 300 mm/400 mm/520 mm
Technical documentation	Printed documents: User manual, installation instructions, circuit diagrams. Technical instructions and videos that explain all operating steps are preinstalled.
Compressed air supply	5-8 bar at ~5 litres/minute
Power supply	100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz
Weight	Approx. 690 kg depending on selected options
* The machine and repeat accuracy check will be conducted using production-typical process variables.  The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements.
