  • GKG GSE SMT Stencil Printer

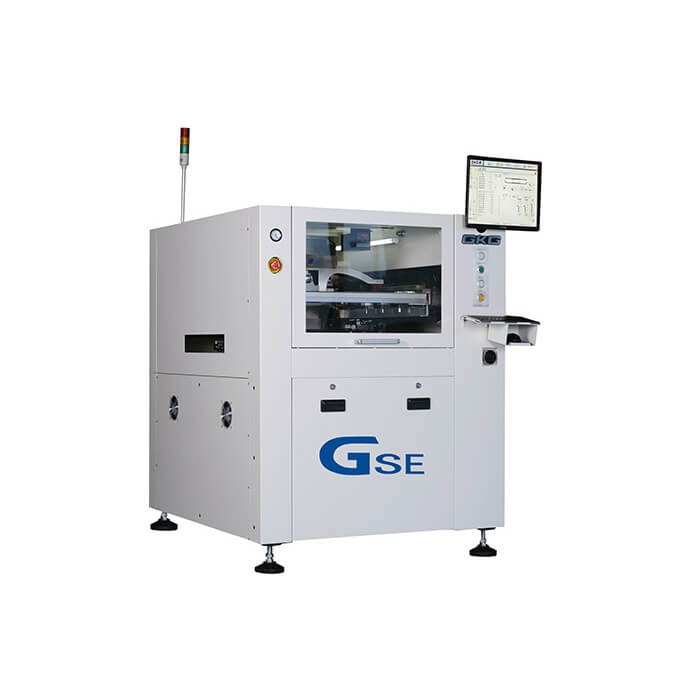

GKG GSE SMT Stencil Printer

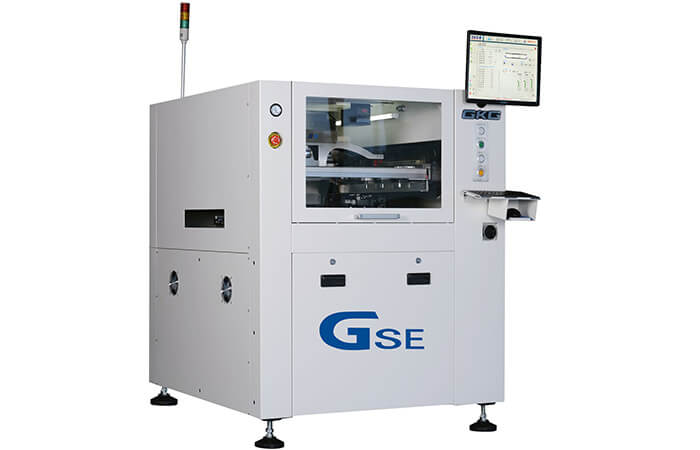

GKG GSE SMT Stencil Printer

  • Gross Power: 50W
  • PCB Size:400x340mm
  • size: 1158*1362*1463mm
  • Weight:1000Kg
  • Product description: GKG GSE SMT Stencil Printer Full Automatic, Gross Power: 50W, Voltage: 220V, size: 1158*1362*1463mm, Weight:1000Kg PCB Size:400x340mm
  • INQUIRY

GKG GSE SMT Stencil Printer

Products description


GKG GSE SMT Stencil Printer Full Automatic

Automatic solder paste printer is a high-precision and high-stability automatic vision printer. GKG company follows the development trend of the SMT industry. The new generation of automatic vision printer is synchronized with international leading technology, high-resolution visual processing. , High-precision drive system, Suspending adaptive scraper, precise plate positioning processing and smart frame clamping structure, compact structure, both accuracy and high degree of flexibility, provide customers with efficient, accurate printing required Function, more customers provide a prominent price.

The main technical parameters:
(1) Printing accuracy: ±0.025mm
(2) Repeat accuracy: ±0.01mm
(3) Printing cycle: <7.5s
(4) Frame size from 420×520mm to 737×737mm
(5) Printable PCB size from 50×50mm to 400×340mm
Features:
1. The GKG dedicated manual adjustment jacking platform is simple, reliable, low-cost, and easy to adjust manually. It can quickly adjust the height of the PIN pin top of different thickness PCB boards.
2. Image and optical system New optical system - uniform ring light and high-brightness coaxial light, with brightness function that can be infinitely adjusted, making all types of Mark points can be well recognized (including uneven Mark Point) to adapt to tin, copper, gold, spray tin, FPC and other types of different colors of PCB.
3. Scraper system slide-type scraper system to improve operating stability and prolong service life
4. Cleaning System The new wiper strip ensures full contact with the stencil, and the large vacuum suction force guarantees that the solder paste remaining in the cell hole can be eliminated. The effective automatic cleaning function is achieved: three cleaning modes of wet and dry vacuum, and the software is free to use Set the cleaning mode and cleaning paper length
5. Steady steel net fixing structure
6. Perfect 2D detection system

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Parameter

Repeat Position Accuracy

±0.01mm(Test data and method are available)

Printing Accuracy

±0.025mm(Test data and method are available)

Printing Speed / Cycle Time

<8s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min-Max

470mm X340mm-737x737mm

Screen Stencil Size/Thickness

20mm ~ 40mm

PCB Size/Min-Max/Thickness

80X50mm-400x340mm/0.4~15mm

PCB Warpage Ratio

1%Based on diagonal length

Bottom of Board Size

15mmStandard configuration, 25mm

Edge of Board Size

3mm

Conveyor Height

900±40mm

Conveyor Direction

Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed

100-1500mm/sec Programmable control

Board Positioning

Support System

Magnetic pin/Side support block/Flexible automatic pinoptional

Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting

Print head

Two indepandent Motorised printheads

Squeegee Speed

6~300mm/sec

Squeegee Pressure

0-10kg software controlclosed-loop pressure feedback, pressure value visible

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.

Steel Mesh Separation Speed

0.1~20mm/sec Programmable Control

Cleaning Method

Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods

Table Adjustment Range

X:±3mm; Y:±7mm θ:±2°

Type of Fiducial Point

Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System

Single digital camera for upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions/Weight

Depends on exactly model

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%
