  • Hanwha SM471 Plus Pick and Place Machine

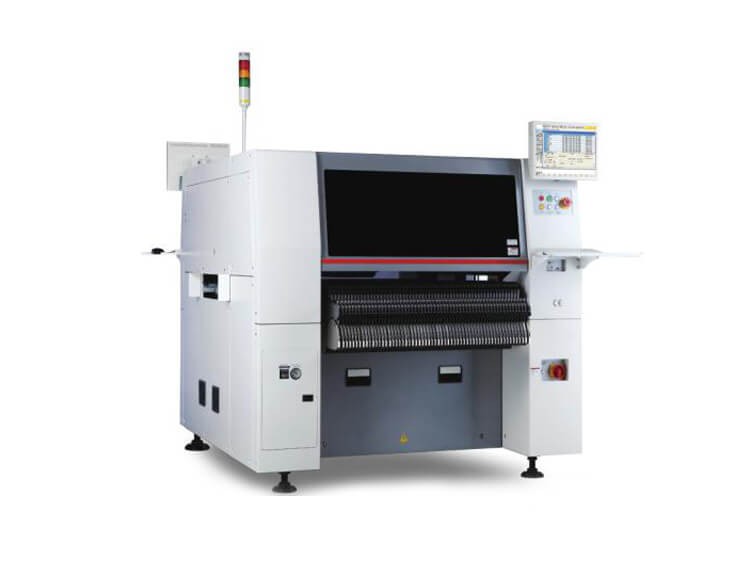

Hanwha SM471 Plus Pick and Place Machine

Hanwha SM471 Plus Pick and Place Machine

  • Component Range:0402(01005
  • Patch speed 78,000 CPH
  • 2 Gantry x 10 Spindles/Head
  • weight 1820KG
  • Product description: Hanwha SM471 Plus Pick and Place Machine, Component Range:0402 above, Patch speed 78,000 CPH,2 Gantry x 10 Spindles/Head, weight 1820KG
  • INQUIRY

Hanwha SM471 Plus Pick and Place Machine

Specifications:


Hanwha SM471 Plus pick and place machine

The Hanwha SM471 Plus pick and place machine is a high-speed mounting mahcine equipped with 10 axes for each mount head and dual-boom.

high-performance newer flying camera placement machine that delivers world-class top speeds of 78,000 CPH.

0402(01005")~14mm(h12mm) can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

Dual Lane System

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by

adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement

modes according to production characteristics.

Electrically Driven High Speed and High Accuracy

Specifications

SAMSUNG SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μ[email protected]μ±3σ

±40μ[email protected]μ±3σ

±40μ[email protected]μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600
