  • Samsung SM320 Pick and Place Machine

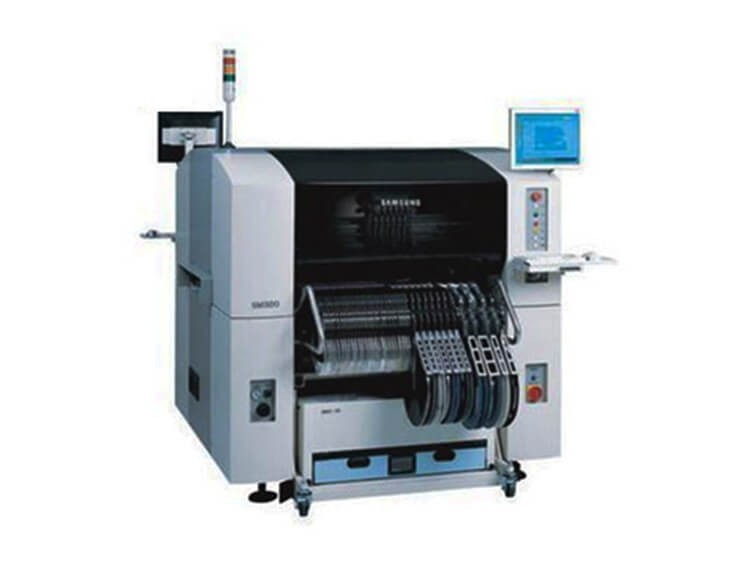

Samsung SM320 Pick and Place Machine

Samsung SM320 Pick and Place Machine

  • theoretical speed :18500CPH
  • PCB size 510 * 460mm
  • Mounting range 0402mm Chip ~ 55mm IC
  • Machine weight 1800KG
  • Product description: SM320 Pick and Place Machine, theoretical speed :18500CPH, PCB size 510 * 460mm, Mounting range 0402mm Chip ~ 55mm IC, Machine weight 1800KG
  • INQUIRY

Samsung SM320 Pick and Place Machine

Specifications:


Chip theoretical speed :18500CPH
Mounting range 0402mm Chip ~ □ 55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm

Component identification method

FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)
Components can be mounted range
FLYING VISION:1005 ~ □ 22mmIC (Option: 0603 ~ □ 12mmIC / 0402 ~ □ 7mmIC)

Mounting size:Standard stage vision (FOV 35) ~ □ 32mmIC

(Pitch 0.4mmQFP / 0.75mmBGA / ~ □ 55mm (MFOV))

Standard stage vision (FOV 45) ~ □ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ □ 55mm (MFOV))

Standard stage vision (FOV 20)~ □ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA)

Min.lead pitch (QFP) FOV10

0.3mm (QFP) /0.65mm (BGA)

Min.Ball pitch (BGA)
FOV15
0.5mm (QFP) /0.75mm (BGA)
FOV25
0.5mm (QFP) /0.75mm (BGA)
Max.Height
H12mm (Flying camera standard)
H15mm (Flying camera standard)
PCB board size
smallest size
50 (L) * 40 (W)

biggest size
460 (L) * 400 (W) / Option: 510 * 460, 640 * 510
PCB board thickness
0.38mm-4.2mm
Install feeder number
120ea / 112ea (docking cart)
Pressure and power consumption
power supply
AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V)
Air pressure
5kg / ㎡, 260 NI / MIN
Machine weight
1800KG
Machine size
1650 L * 1680 D * 1530 H.

Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials,

but also can produce QFP material, suitable for small-scale production of independent products,

but also can be used in high-life turret Mounter Line for multi-functional chip processing.

Equipment, small size, light weight, does not account for the place.

Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6

placement heads, each with individual illumination allowing 6 totally different components to

be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.
