  • Solder Paste Jet Dispenser Mycronic MY700JD

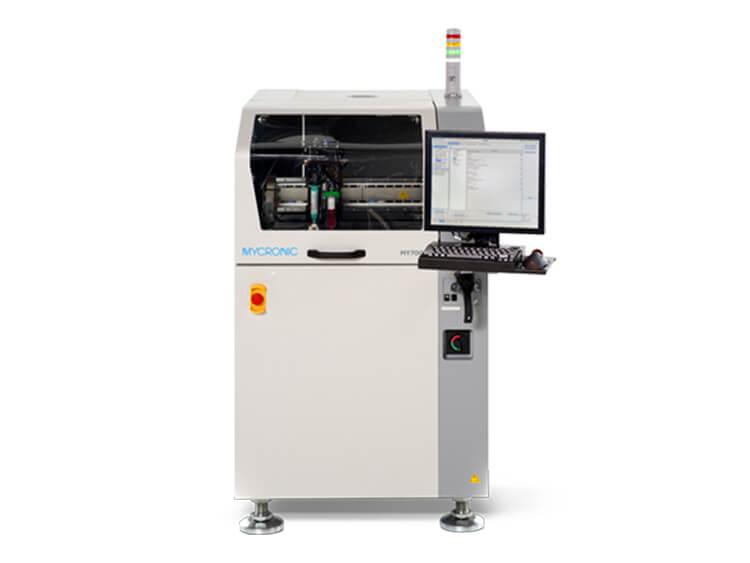

Solder Paste Jet Dispenser Mycronic MY700JD

Solder Paste Jet Dispenser Mycronic MY700JD

  • Nozzle size: 50-400μm
  • Jet frequency: 720,000DPH
  • weight: 1,600kg
  • Dimension: 843 x 1,550 mm
  • Product description: Solder Paste Jet Dispenser Mycronic MY700JD, Nozzle size: 50-400μm, Jet frequency: 720,000DPH, weight: 1,600kg, Dimension: 843 x 1,550 mm

Solder Paste Jet Dispenser Mycronic MY700JD


Solder Paste Jet Dispenser Mycronic MY700JD

Accurate: Maintains high positional accuracy at throughputs at least three times higher than general dispensers.
Simple: Replaces multi-head solutions with one machine. Applicator with low parts count simplifies service and maintenance.
Flexible: Dual-head option allows dispensing of two different assembly fluids in one process step.
Reliable: Well-proven design, compatible with a wide range of industry fluids.

The highest throughput in a range of dispensing applications
Low- and high-viscosity adhesives. Selective coating, capillary underfill and encapsulation. The MY700 Jet Dispenser handles it all at substantially higher speeds than any other dispensing system — no matter what type of board you are producing.
Maximum productivity
With a throughput rate vastly higher than traditional glue dispensers, the MY700JD is the market’s fastest dispensing platform. Its dual-head, dual-lane design with faster board loading and on-the-fly fiducials makes it ideally suited for operator-free, high-volume manufacturing where the absolute highest levels of speed and precision are a necessity. The platform’s advanced motion system makes quick work of complex SMA and random dot patterns as well as long travel distances.
Minimal maintenance
The non-contact jetting nozzles are robust and durable, and require minimal maintenance thanks to an integrated valve cleaning station. Applicator heads have few wetted parts, all of which are easily accessible, which means the unit can remain on the machine during maintenance to ensure low running costs and minimal stoppage time. Whenever machine cleaning is required, the MY700JD’s compact format and dual hoods allow easy access from either the front or back of the machine.
Intelligent guidance

To ensure error-free operations, each applicator includes an ID chip and barcode on the cartridge, which guarantees that the right applicator for the job is used. With a vast and expanding range of approved fluids, the MY700JD gives you enormous versatility for future applications, together with vastly improved throughput and minimal operator intervention.


Jet frequency


Gantry type

X /Y linear motor


Advanced DSP motion control

Gantry acceleration, max

3g (30m/s2)

Active field of view

16 x 16 mm


Single dot repeatability, 3σ (X,Y)(2)

± 35μm

Single dot accuracy, Cpk = 1.0 (X,Y)(2)

± 40μm






Solder paste

SMA and other adhesives

Applicator type

Piezo ejector

Pneumatic valve/Piezo valv

Droplet size

1 .9 –35nl(3)

5 –1,000nl

Min dot diameter



(this is material dependent)

Nozzle sizes


50 – 400μm

Syringe size

30 cc

5, 10, 30 cc





Hermes communication

2D inspect and repair — paste present detection

High speed — 1,080,000dph

SMD adhesive — jet printing of SMA

Fine pitch — jet printing for fine pitch components

Shared databases

PCB ID — board traceability

Serial start — automatic start

Dual layout

Dual heads

Board indexing

Cleaning station for ejector

Cleaning station for applicator

Internal buffering 200 mm

Internal buffering 250 mm

Extended Internal Conveyor — For boards up to 915 mm in length

Foot SMEMA — spacer for SMEMA height

Vacuum clamping

Fiducial recognition on-the-fly

Stop pin

Weigh station

AI2 — active inspection interface, repair loop

E-mapping — external information; “bad board” and “fiducial”

Board thickness range(4)

0.4 – 6 .0 (0.016– 0.24)

Overboard clearance

35 mm (1 3/8)

Underboard clearance

25 mm (1)

Board edge clearance, top

3 mm (1/8)

Board edge clearance, bottom

4 mm (5/32)

Board warp / bow / twist, max(5)

± 2 mm (± 0.08)

Board weight, max

5 kg (11lbs)

Board transport height

880 – 930 mm (34 .6–36 .6)

Board transport height (SMEMA)

930 – 975 mm (36 .6–38 .4)

Transport direction

R->L, L->R, R->R, L->L, Pass

Lane configuration

Dual lane with optional dual layout

Machine weight

1,600kg (3,530lbs)

System Footprint

843 x 1,550 mm

Power requirements

4kW (peak)

Power consumption



3 phase AC 200/ 220/ 240/ 380/ 400/ 420V ± 10 %

Air pressure

5 –10 bar (70 –140PSI)(9)

Air quality

ISO 8573-1 4 4 4

Air consumption, max

250 l/min (9CFM)

Ambient temperature

+ 18°C to + 32°C, 30 – 80 % RH

Clean room

Fulfills class 10,000


Lower than 1,000 m above sea level

Sound level
